Two-Color Molding VS. Overmolding: How To Choose The Right Process?

When producing items that combine multi-materials (rigid and soft materials), overmolding and two-color molding are the dominant technologies. While final products may appear similar, these processes differ significantly in cost structure, production efficiency, and application scenarios.

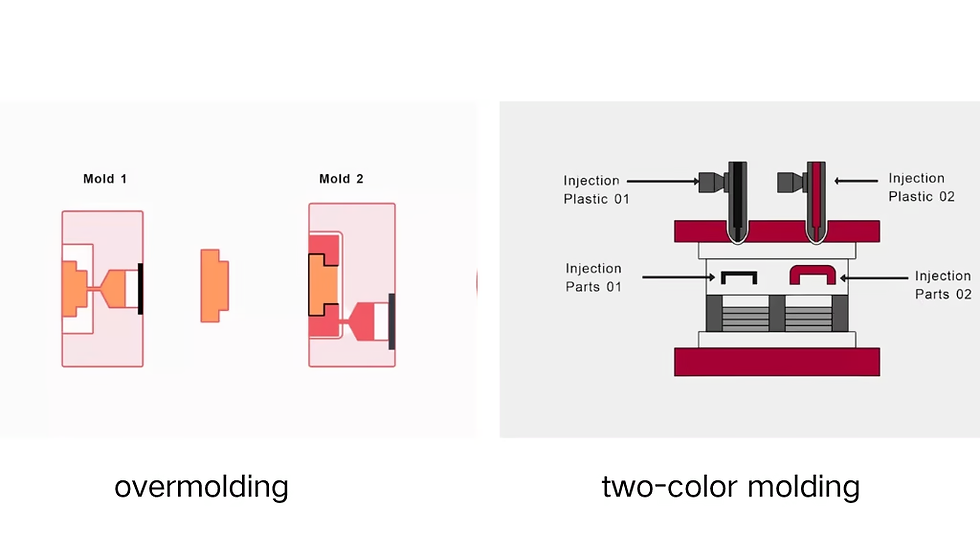

The Core Distinction: One Cycle vs Two Steps

Two-color molding combines two materials in a single automated cycle using specialized equipment, while overmolding is a two-step process that can utilize standard machines with separate operations. This distinction creates ripple effects throughout design possibilities, cost structures, and production efficiency:

Key Performance Comparison

Dimension	Two-Color Molding	Overmolding
Equipment Cost	High (requires dedicated two-color machines)	50% lower (works with standard machines)
Production Speed	Short cycle (≈40s/unit, ideal for mass production)	Longer cycle (≈60s/unit, suited for small batches)
Material Compatibility	Limited by the melt temperature and the shrinkage matching	Supports diverse combinations (e.g., metal-plastic encapsulation)
Precision	High (±0.05mm) with no mold misalignment risk	Dependent on transfer accuracy
Typical Applications	Automotive lighting, electronic device buttons (integrated exterior+function)	Power tool handles, medical device grips (non-slip+comfort)

Guide to Selection: Two-Color Molding VS. Overmolding

1. Product Requirements

Aesthetics-First: E.g., gradient color home appliances panels → Choose two-color molding.

Function-First: E.g., baby products needing soft-touch layers → Choose overmolding.

2. Production Scale

Mass Standardized Production (e.g., 1M+ annual phone cases): Two-color molding reduces long-term costs by 20%-30%.

Small-Batch, Multi-Variety (e.g., custom medical parts): Overmolding offers lower mold change costs.

3. Material Combinations

Same Material, Different Colors (ABS+ABS two-color): Two-color molding is more efficient.

Heterogeneous Materials (PC rigid + TPE soft): Overmolding provides better compatibility.

 Conclusion

Choose Two-Color Molding for high efficiency, precision, integrated aesthetics, and large-scale production.

Choose Overmolding for material diversity, flexible production, or budget-constrained small-batch scenarios.

Evaluate based on product specs, production volume, and budget. For custom solutions, contact our technical team for a free consultation.
