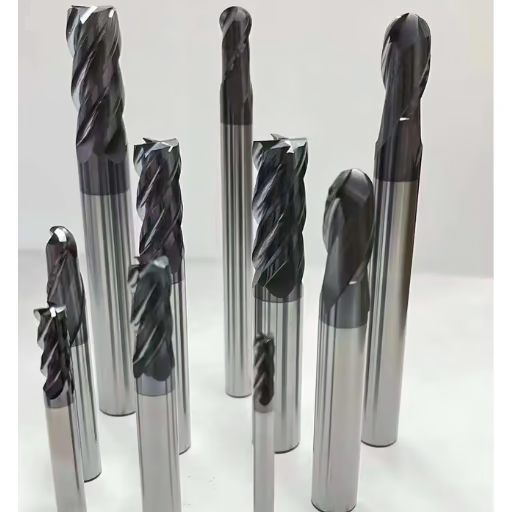

A Quick Guide to CNC Milling Cutter

CNC milling relies heavily on selecting the right cutting tool, as each tool affects machining efficiency, surface quality, and overall precision. In rapid prototyping and custom manufacturing, several milling cutters are widely used to handle different geometries and materials. Below is an overview of the most common CNC milling cutters and their key applications.

1. Flat End Mill (End Mill)

Flat end mills are the most commonly used cutters in CNC machining.  With a flat cutting edge, they are ideal for machining sharp edges, slots, pockets, and 2D/3D contouring. They deliver excellent accuracy and are suitable for metals, plastics, and composites.

2. Ball End Mill

A ball end mill features a hemispherical tip, making it perfect for machining curved surfaces, 3D shapes, molds, and complex contours. It provides smoother finishes on intricate details and is commonly used in product design and mold making.

3. Bull Nose End Mill

Also known as a corner-radius end mill, this cutter has a flat bottom with rounded corners. It offers better strength and longer tool life than standard flat end mills. Bull-nose mills are ideal for roughing and semi-finishing 3D surfaces.

4. Face Mill

Face mills have multiple cutting edges designed for efficient material removal and superior surface finishing on large, flat surfaces. They are widely used for facing operations on aluminum, steel, and other metals.

5. T-Slot Cutter

A T-slot cutter is designed specifically for machining T-shaped grooves commonly used in machine tables and fixture designs. Its special shape allows it to cut undercuts that cannot be produced with standard end mills.

6. Keyseat (Keyway) Cutter

Keyseat cutters are used to machine keyways on shafts and hubs. Their narrow, precise cutting width ensures accurate slot dimensions required for mechanical transmission parts.

By choosing the right CNC milling cutter, manufacturers can achieve higher precision, better surface quality, and improved machining efficiency—critical factors for rapid prototyping and small-batch production.
